Elevated Base System
Floating Platform
A suspended platform solution for elevated padel court installations where drainage, uneven ground or structural height adjustment require a stable modular base system.
A suspended platform solution for elevated padel court installations where drainage, uneven ground or structural height adjustment require a stable modular base system.
Key advantages of our elevated floating platform structure for padel court projects.
Support assemblies allow height adjustment to suit different site conditions.
Beam and frame modules are designed for organized assembly and transport.
Hot-dip galvanized steel components support outdoor durability.
Suitable for locations that need a raised deck above the original surface.
Core structure and packaging details for the floating platform system.
| Component | Specification | Color | Quantity | Packaging |
|---|---|---|---|---|
| Load-bearing Side Beam | Rectangular steel tube 100 x 200 x 3.0 mm; welded 14 mm connecting plate; hot-dip galvanized + powder-coated finish; connected with 8 mm galvanized steel plates. | Optional | 12 pcs | Fabric wrap + stretch film |
| Main Load-bearing Beam | Support pipe 80 x 60 x 2.75 mm / 80 x 50 x 2.75 mm, hot-dip galvanized after fabrication. | Galvanized finish | 130 m | Fabric wrap + stretch film |
| Bottom Support Frame | Steel tube frame 40 x 40 x 2.0 mm / 40 x 20 x 2.0 mm; welded and hot-dip galvanized; each module 2 m x 2.5 m. | Galvanized finish | 40 pcs | Pallet + stretch film |
| Panels | 20 mm high-density fiberglass surface baseboard, 1.25 m x 2 m per sheet; fire-resistant, waterproof and weather-resistant. | - | 80 pcs | Fabric wrap + stretch film |
| Height-Adjustable Base Assembly | Adjustable height 90 - 1120 mm, customizable engineering plastic assembly. | - | 190 sets | Carton box |
| Hardware Set | Grade 8.8 hot-dip galvanized high-strength bolts and nuts with 304 stainless-steel anti-theft caps. | - | 1 set | Carton box |
Reference photos of the floating platform structure, underside support system, and portable platform application details.

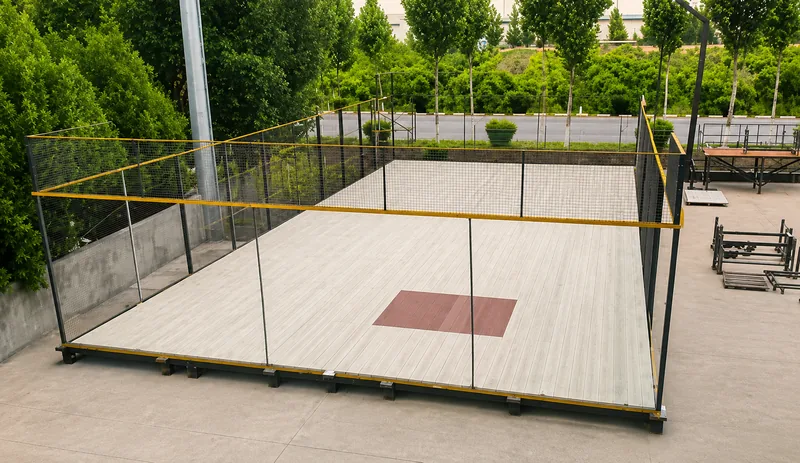

Raised playing surface with perimeter fence structure installed on the modular base.

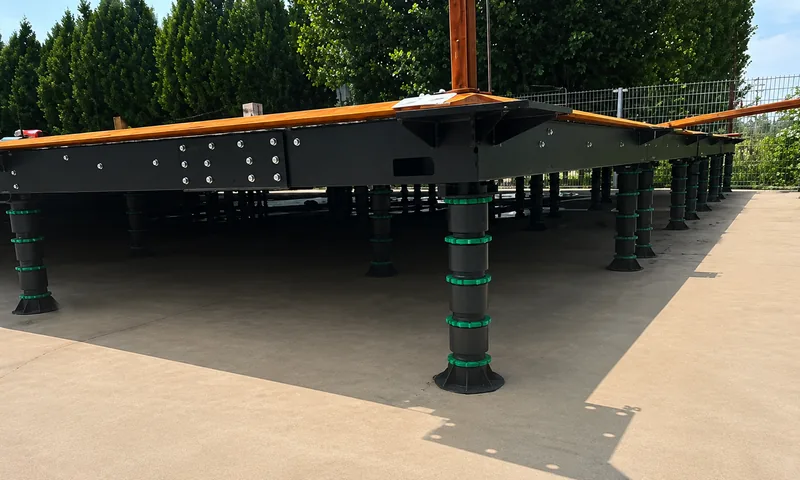

Adjustable base assemblies distribute load and provide flexible elevation control.

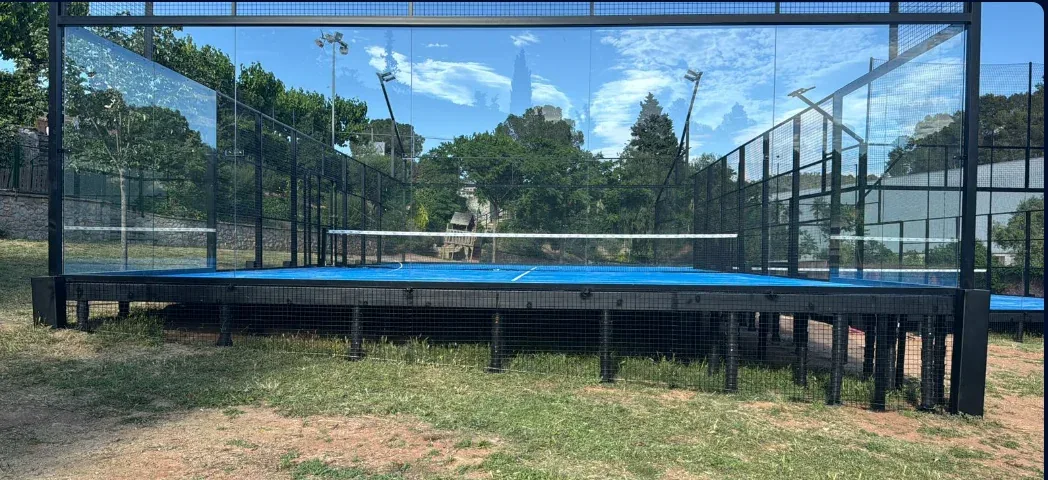

Portable raised flooring setup for temporary court and event installations.

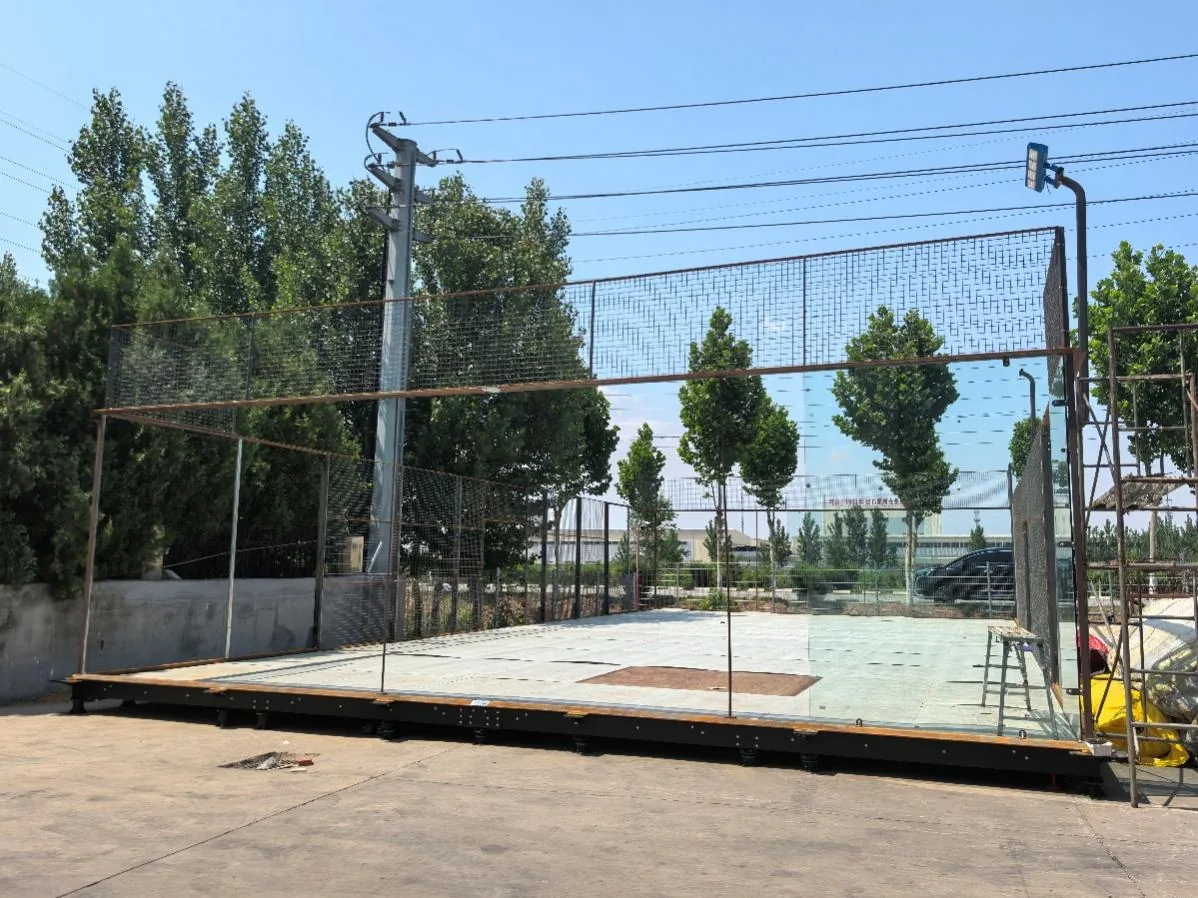

Reference detail showing modular platform layout and deck surface finish.

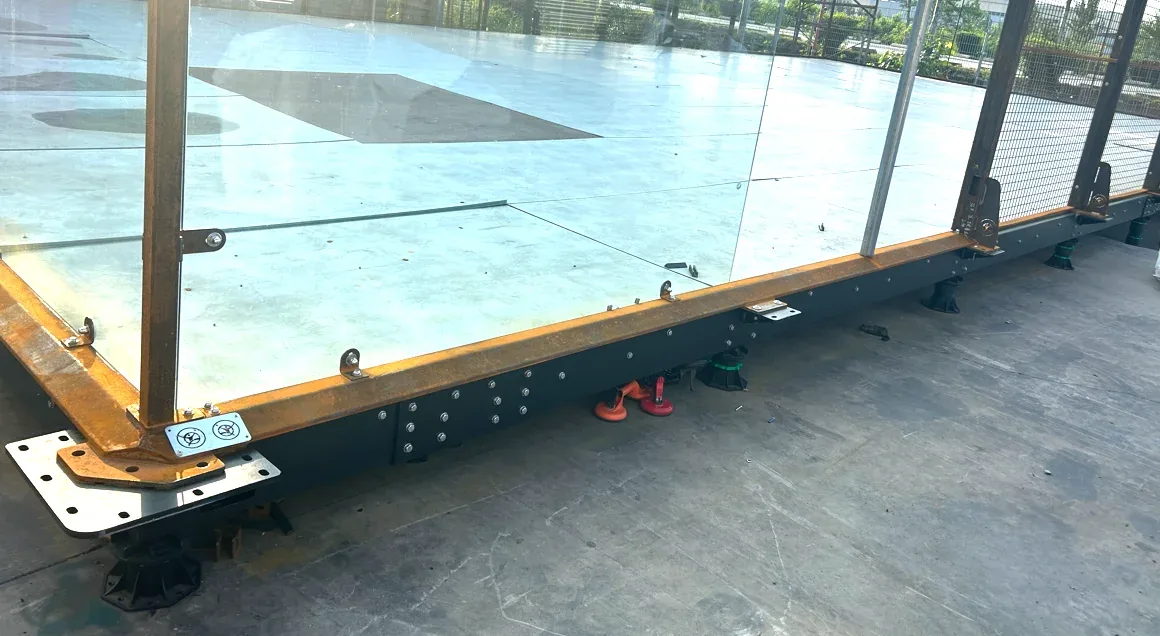

Additional project photo highlighting portable platform application scenarios.

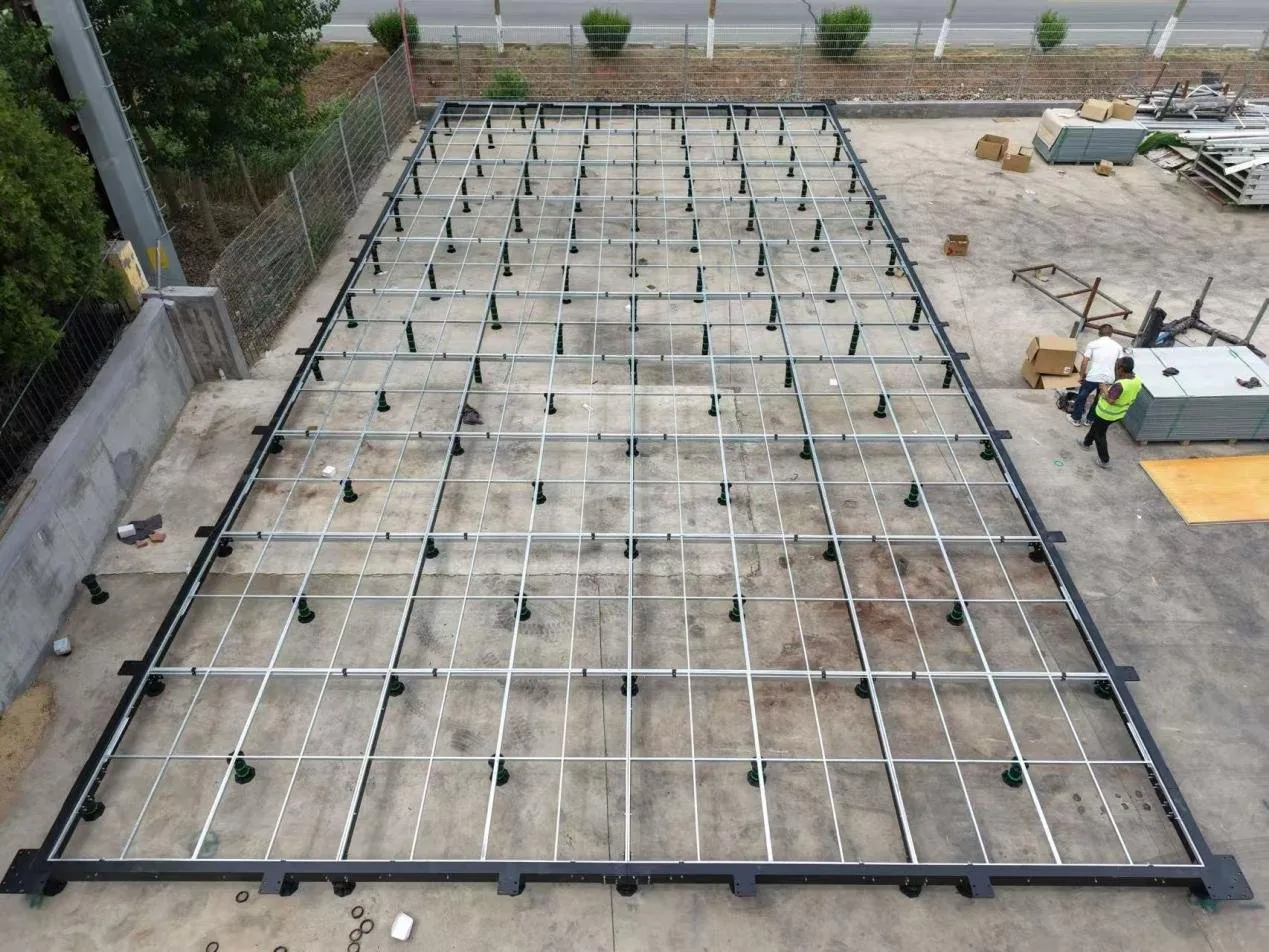

Portable flooring reference for exhibitions, temporary courts, and event builds.
Talk with our team about site conditions, target platform height and the right floating platform configuration for your project.
