Sunshade Structure

Padel Court Canopy

Professional sunshade canopy designed to protect players from sun exposure and weather elements. Ideal for outdoor padel courts.

Get a Quote
Padel Canopy

Product Highlights

Discover the features of our professional canopy system.

UV Protection

Blocks harmful UV rays.

Weather Resistant

Waterproof and durable.

Wind Resistant

Engineered for stability.

Custom Colors

Match your brand colors.

Installation Videos

Watch our canopy installation guides

Product Models

Choose from our range of professional canopy solutions.

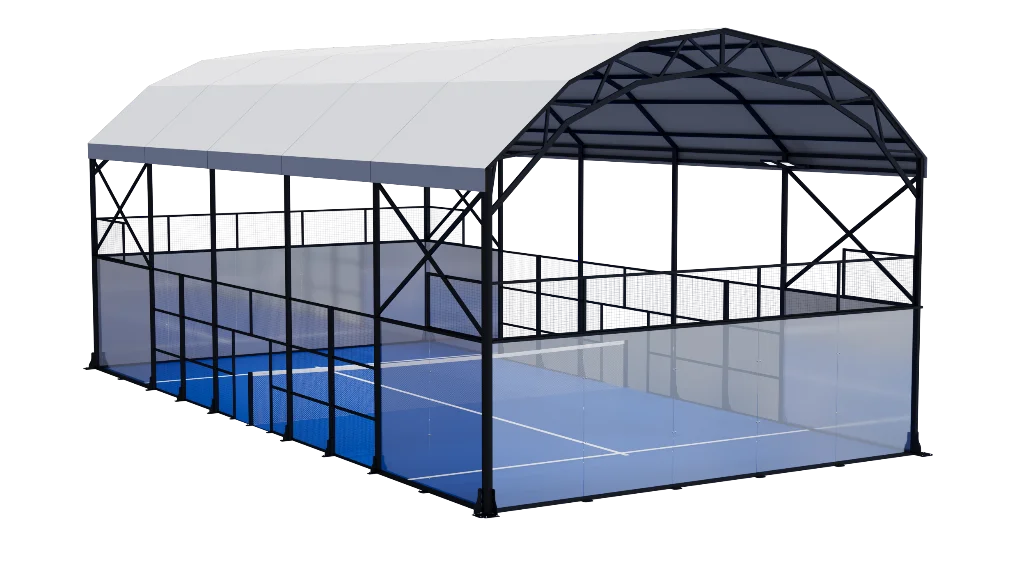

Integrated Canopy and Court

Integrated Canopy and Court

Complete court with integrated canopy structure for all-weather play.

Corner Columns 100 x 100 x 3.0 mm square steel tubes
Canopy Height 8.5 m above ground level
Canopy Membrane 750 g/sq m PVC blackout fabric
Service Life 8-10 years

Surface Treatment Options

Galvanized + Powder

4.5T

Shot blasting + Primer + Powder

4.55T

Hot-dip + Powder

4.7T

Integrated Canopy - Side View

Integrated Canopy (3m Clearance)

Enhanced design with 3m fabric clearance from ground for improved ventilation.

Main Beams 160 x 40 x 3.0 mm U-shaped steel
Eave Height 6 m
Roof Peak Height 8.5 m
Fabric Clearance 3 m from ground

Total Weight

Standard Treatment

7T

Hot-dip Galvanized

7.2T

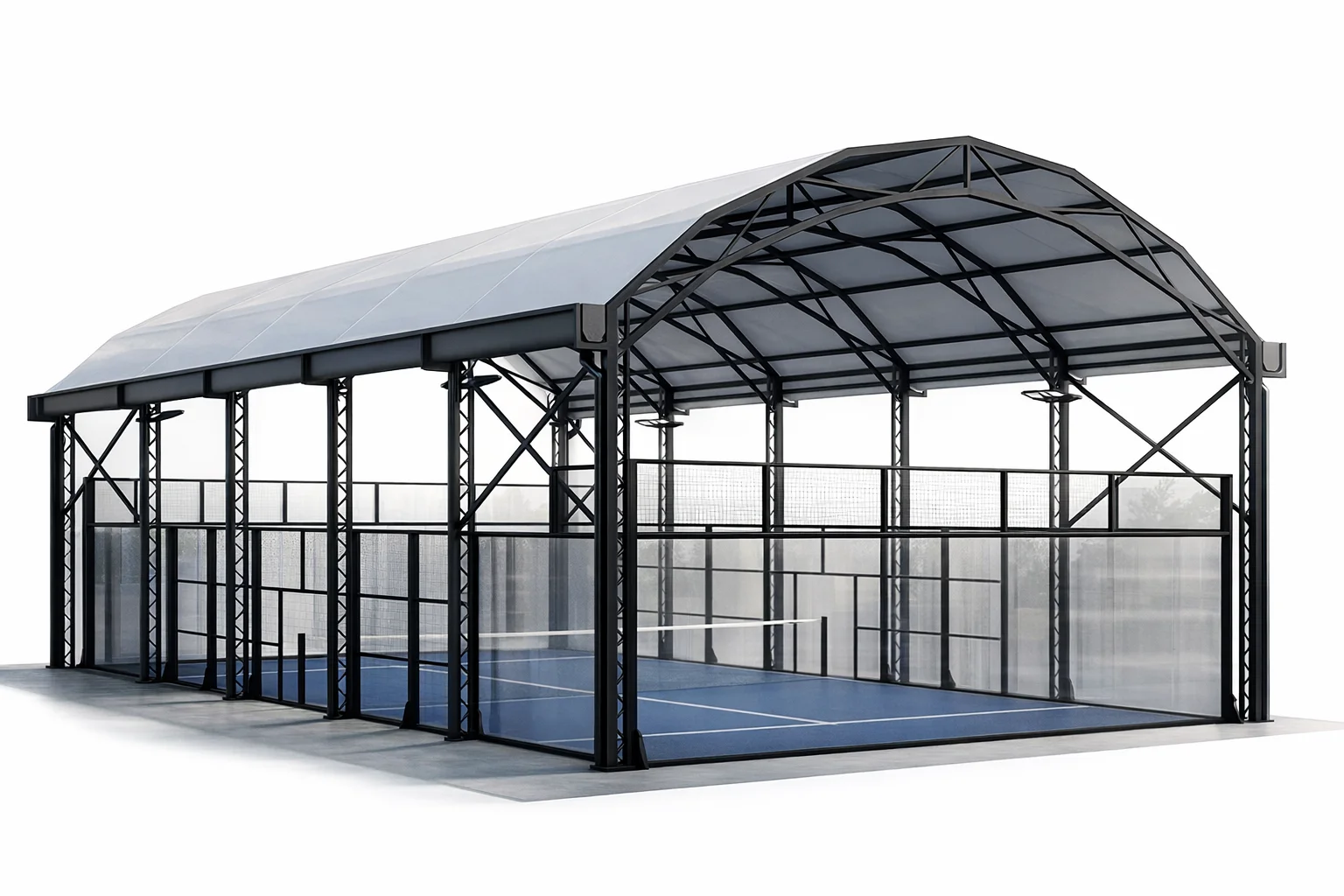

Freestanding Canopy with Drainage

Freestanding Canopy with Drainage

Independent structure with integrated gutter system for effective water drainage.

Corner Columns 100 x 100 x 2.75 mm, height 6m
Main Beams 100 x 50 x 2.75 mm bent rectangular
Drainage 850g fabric soft gutter + 110mm PVC
Fasteners Grade 10.9 bolts, chemical anchors

Structure Weight

Structure

3.8-4.0T

Drainage System

0.4T

Service Life

8-10 years

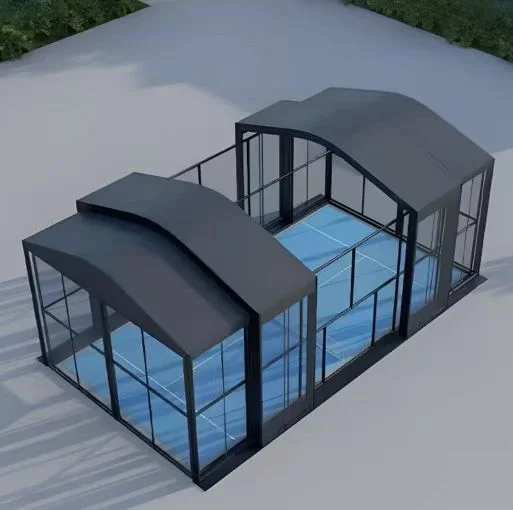

Retractable Canopy

Retractable Canopy Structure

Motorized retractable design for flexible outdoor/indoor play experience.

Main Columns 100 x 100 x 2.75 mm with V-shaped rail
Eave Height 7 m
Roof Peak Height 11 - 11.4 m
Dimensions 11.5m x 24m
Side Clearance 4 m from ground
Total Weight 9 - 9.3 tons

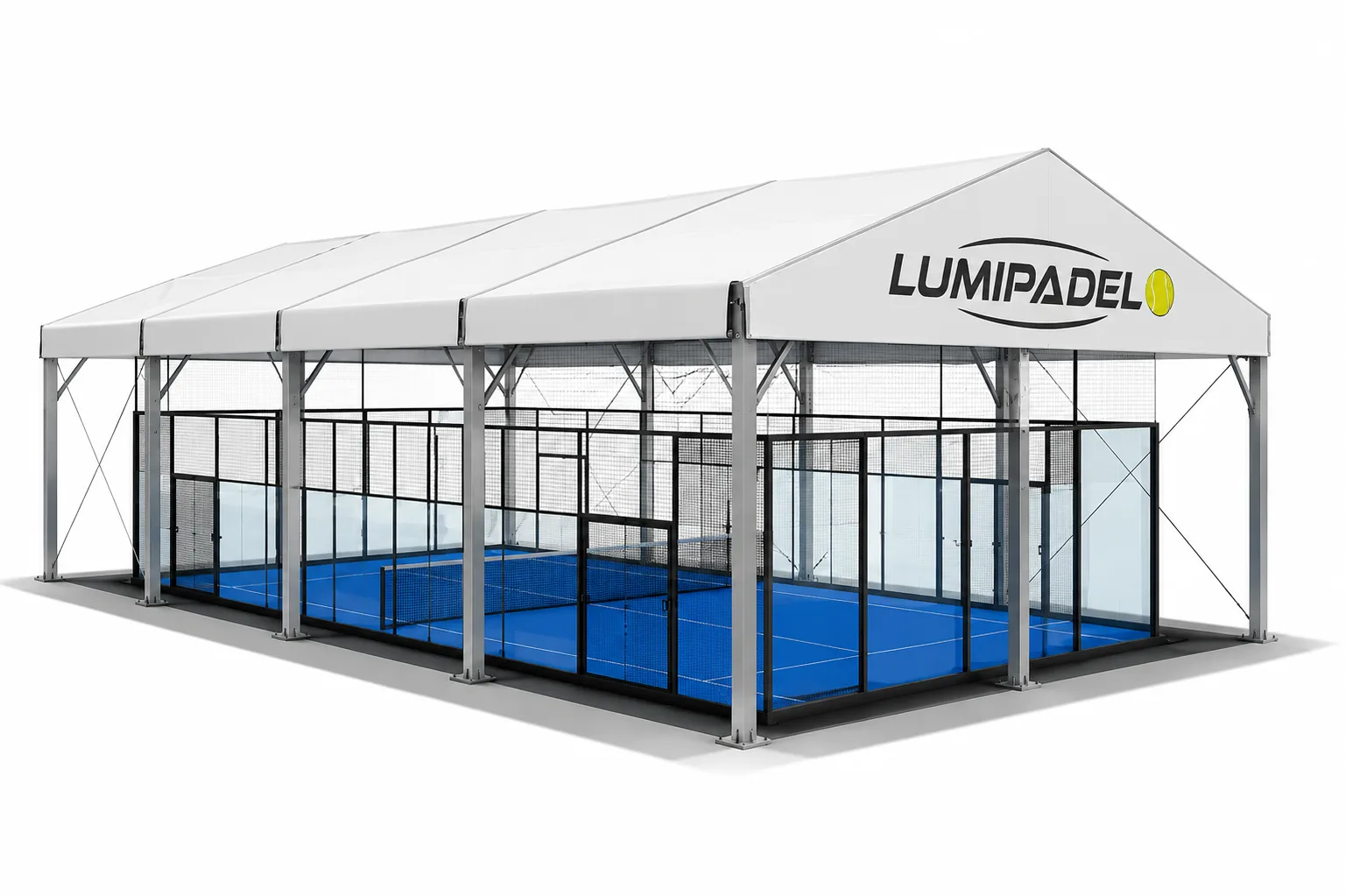

Aluminum Canopy Structure

Aluminum Canopy Structure

Spacious multi-court canopy solution with Aluminum design for professional venues.

Dimensions (Option 1) 24.0m x 8.0m
Eave Height 5 m
Peak Height 7.8 m
Dimensions (Option 2) 36.0m x 24.0m
Eave Height 7 m
Peak Height 10.5 m
Main Columns Heavy-duty steel tubes
Truss System Triangular bracing
Surface Treatment Hot-dip galvanized

Structure Highlights

Arch Design

Wind-resistant

Multi-court

Space-saving

Product Views

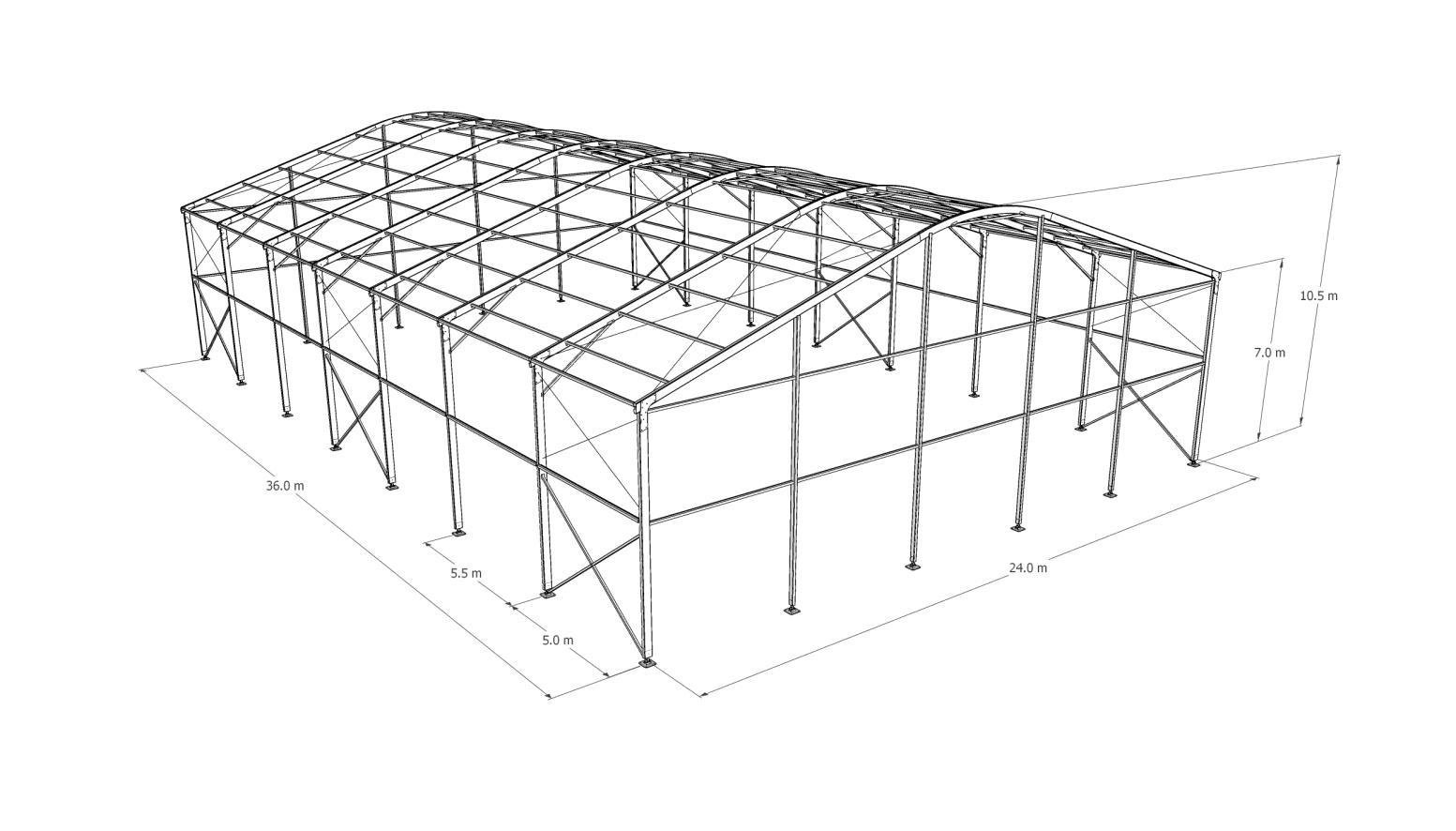

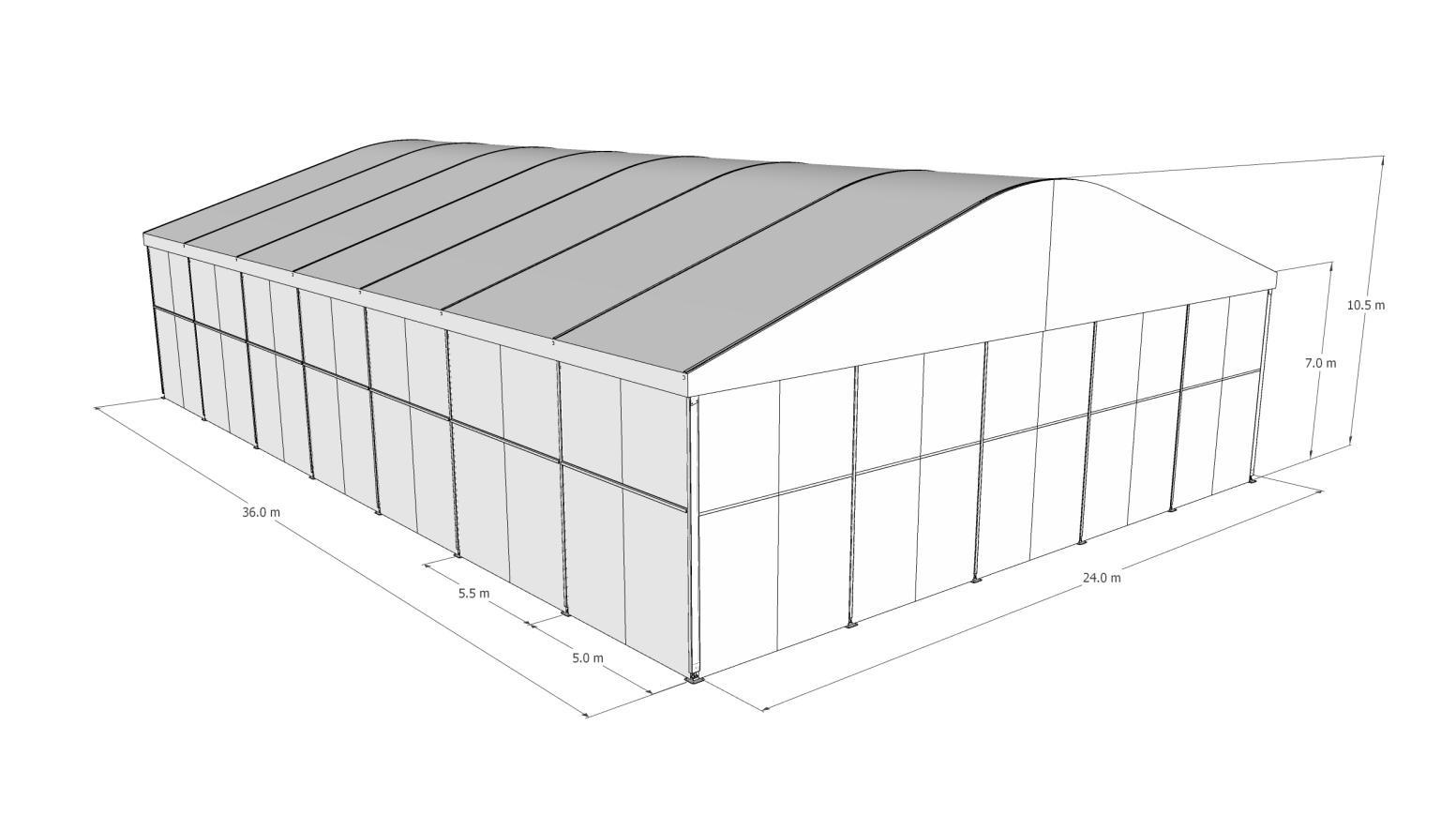

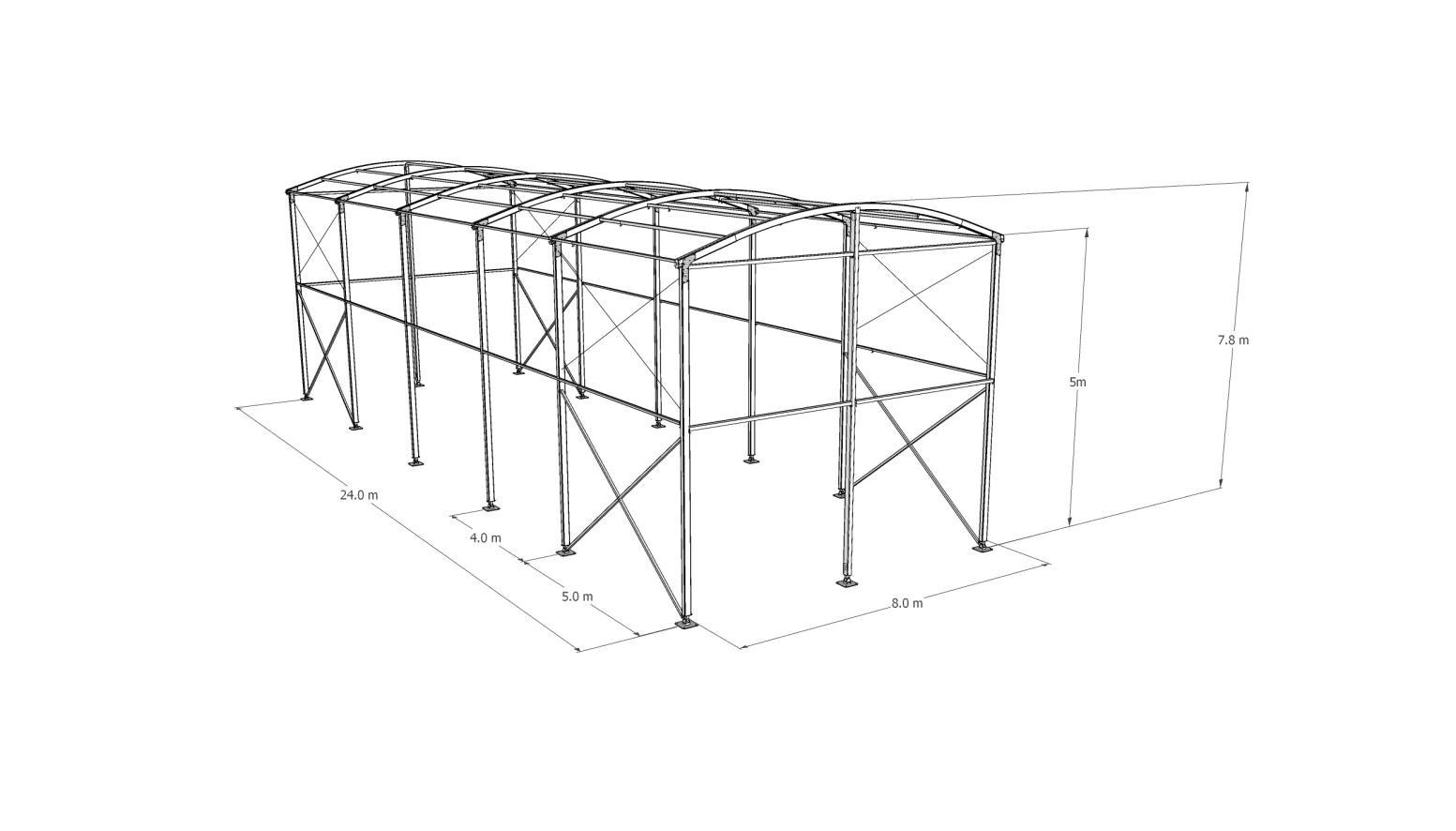

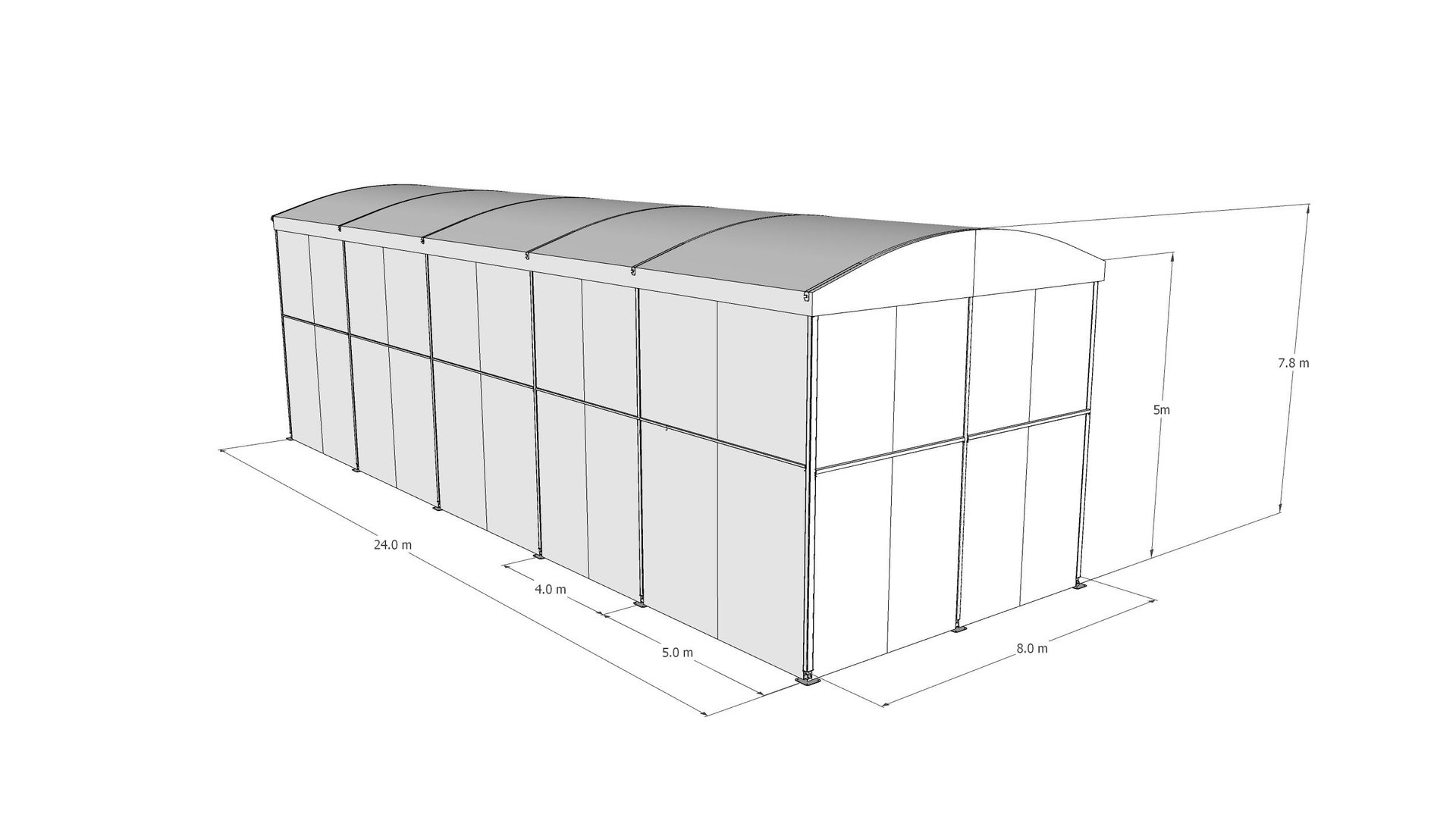

Frame View Frame Detail Full View Frame Detail 2

Common Specifications

Component Specification
Fence Frame 40 x 40 x 3.0 mm steel tubes with 50 x 50 mm mesh panels
Net Posts 80 x 80 x 3.0 mm aluminum alloy with copper tensioning system
Sports Net 3mm PE braided, 45 x 45mm mesh, 6mm PVC-coated steel cable
Canopy Membrane 750 g/sq m PVC knife-coated blackout fabric (white/black)
Fasteners 304 stainless steel bolts, chemical anchors, PE glass pads
Lighting Arms Mounted on columns at 6m height

Protect Your Court

Keep your players comfortable with our professional canopy system.

Contact Us for Pricing
